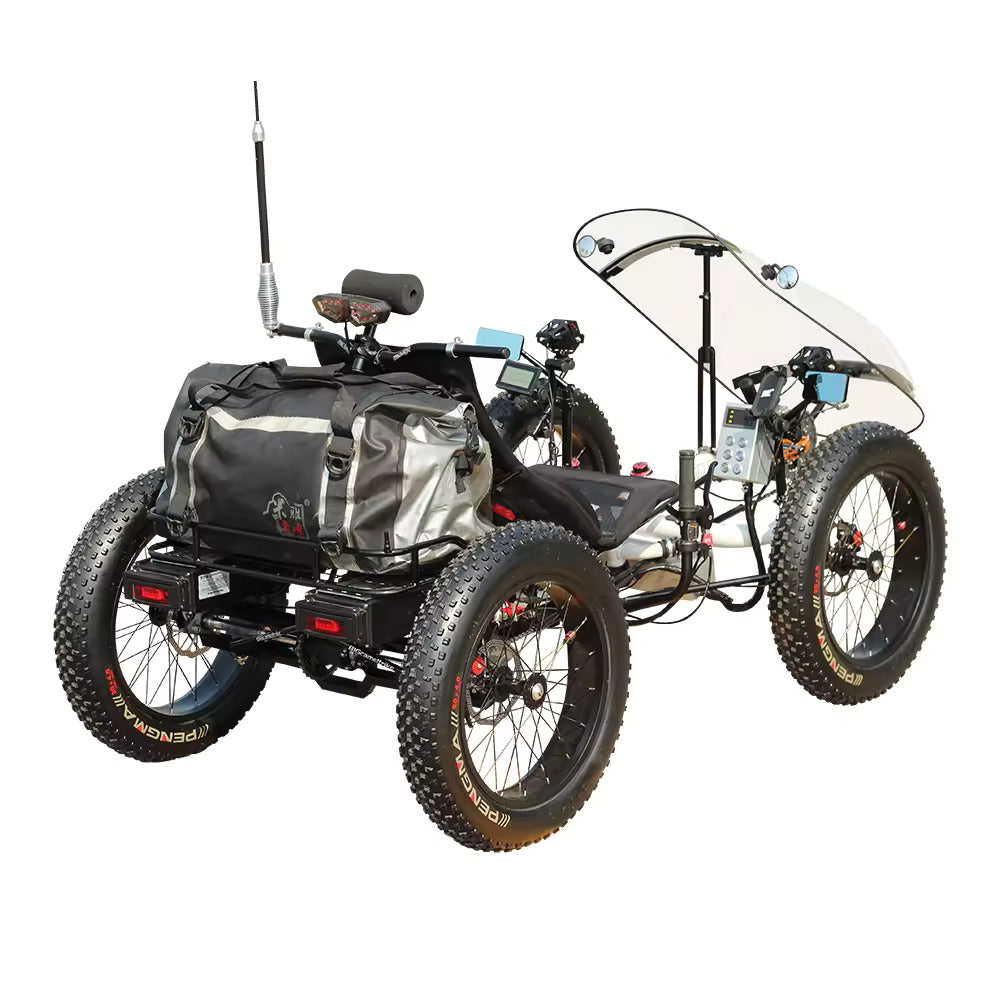

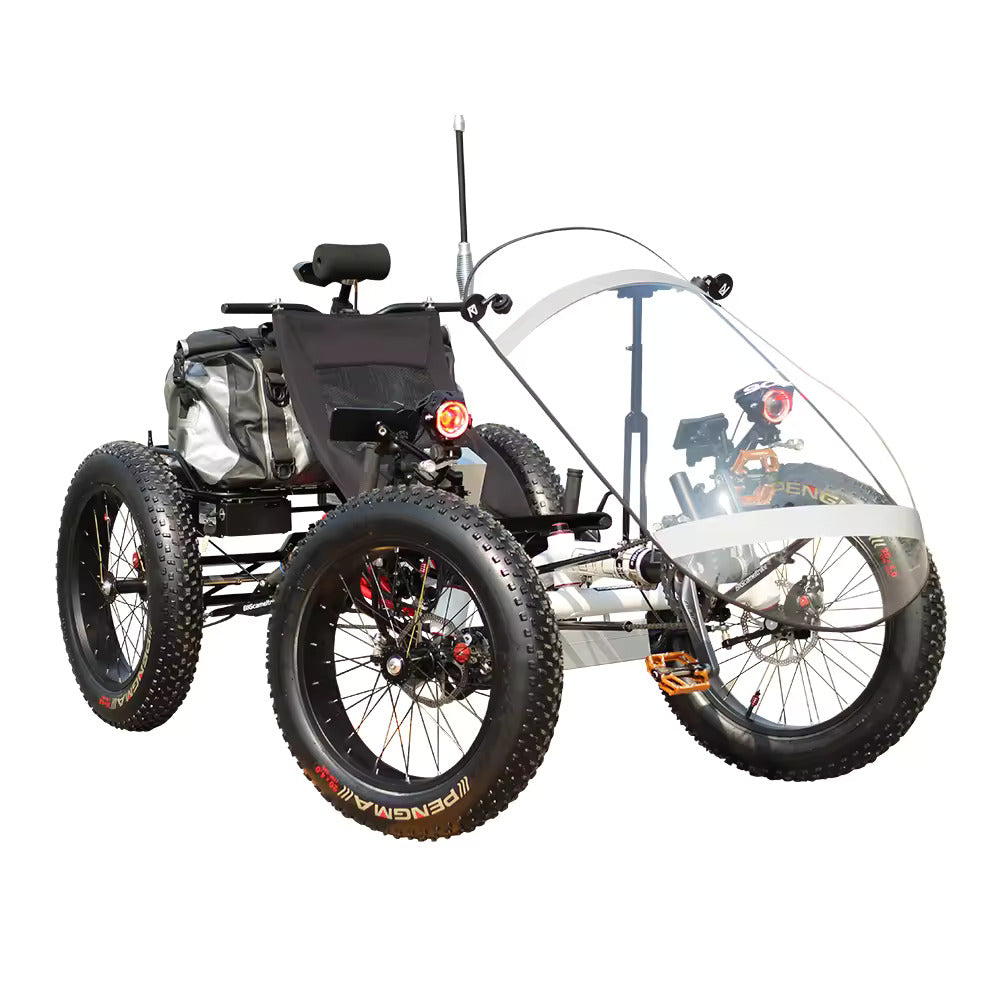

TheraQuad F420E – Rehabilitation Power-Assisted Recumbent Quad
- Enhanced Mobility
- Versatile and Adjustable
- Reliable Durability
- User-Friendly Design
Discover the ultimate in comfort, stability, and versatility with the TheraQuad F420E. This rehabilitation power-assisted recumbent quad is perfect for individuals seeking a reliable and robust mobility solution, designed specifically to support rehabilitation and therapeutic needs.
Key Features:
-

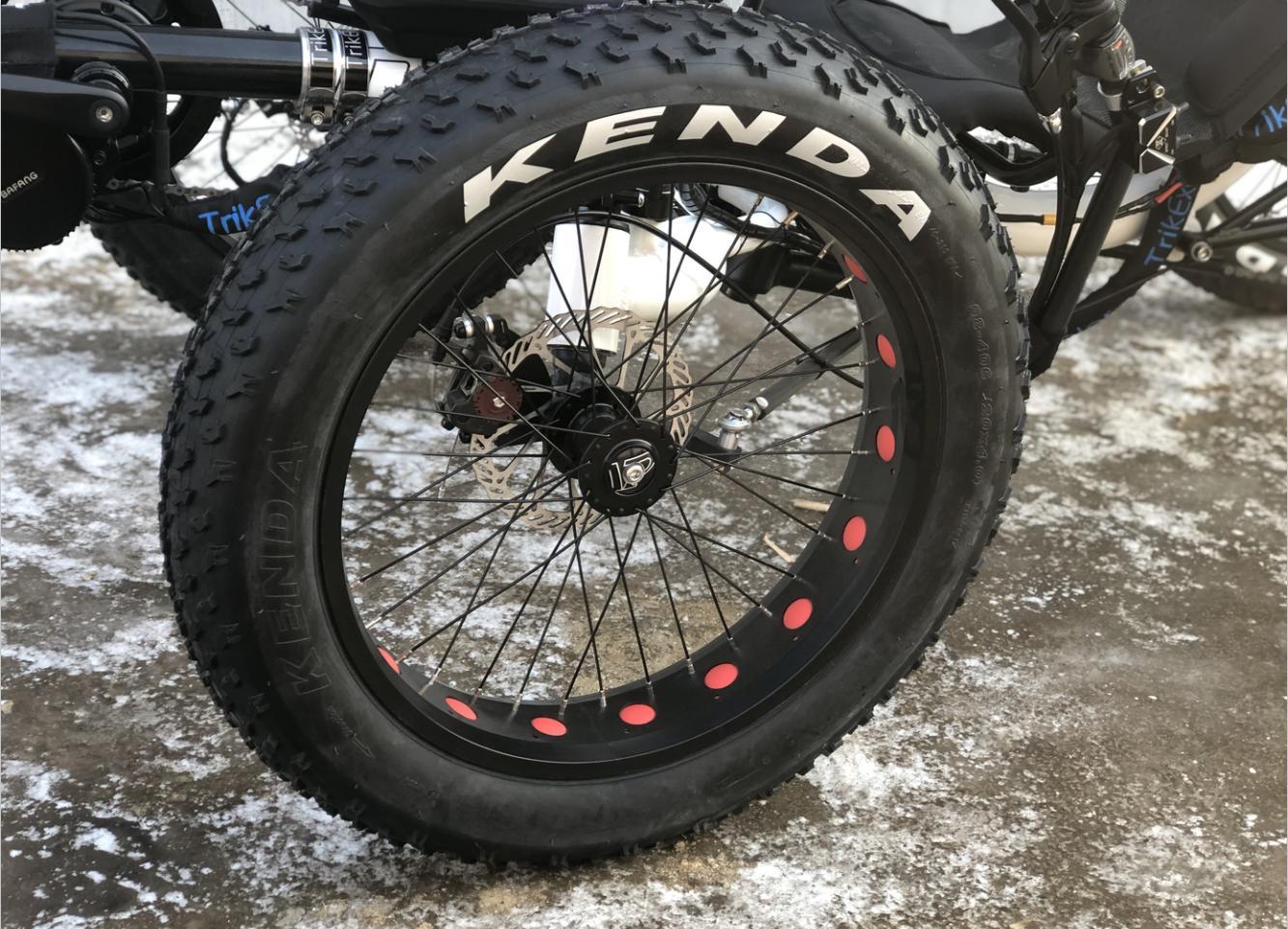

Superior Stability: Equipped with four 20x4.0” fat tires, the TheraQuad F420E offers unmatched stability and excellent traction, even on soft ground and uneven trails. This quad is designed to handle various terrains with ease, providing a smooth and safe experience.
-
Power-Assisted Performance: The TheraQuad F420E features a high-torque 500W Bafang mid-drive motor, powered by a 48V 20Ah lithium battery, providing a maximum range of up to 30 km (approximately 18.6 miles). Upgrade options include a 1000W motor for enhanced performance.
-
Comfortable Ergonomic Design: The adjustable ergo-mesh seat, complete with dual waist pillows, ensures a comfortable and supportive experience during every ride. The seat's adjustable angle and under-seat steering contribute to a more natural and comfortable riding posture, perfect for rehabilitation and prolonged use.
-
Reliable Braking System: Outfitted with Avid BB7 mountain mechanical disc brakes on all four wheels, the TheraQuad F420E ensures reliable stopping power. The front and rear brakes provide both active braking and a parking function for enhanced safety.
-

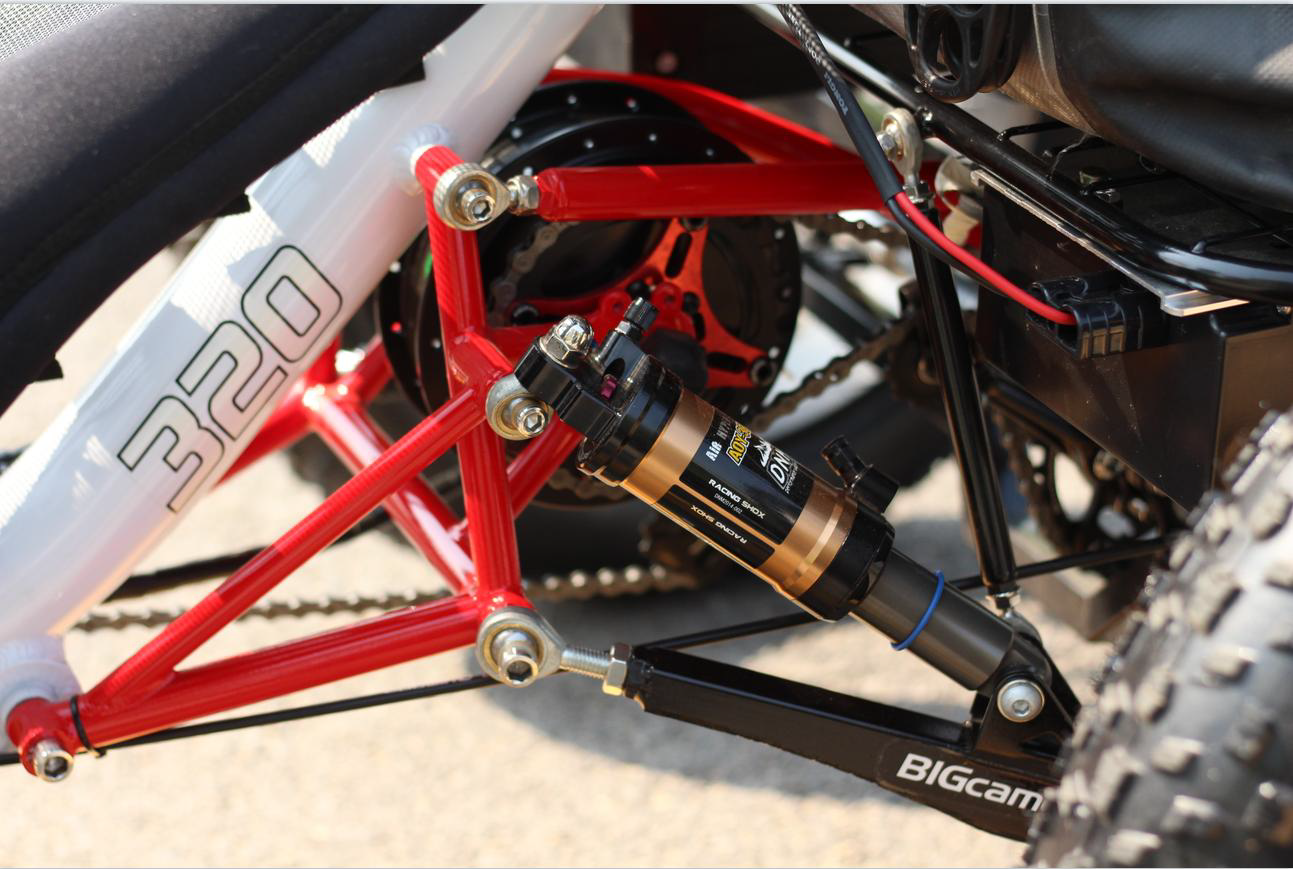

Advanced Suspension System: Dual DNM AOY-36RC air shocks with lock and adjustment capabilities deliver a smooth ride, even on rough trails, ensuring optimal stability and comfort. This is particularly beneficial for individuals with specific rehabilitation needs.
-
Smart and Intuitive Display: The Bafang LCD color display offers a clear, intuitive interface that remains easy to read in direct sunlight or rain. It includes multiple assist levels (3, 5, or 9) and features a USB port for added convenience.
-

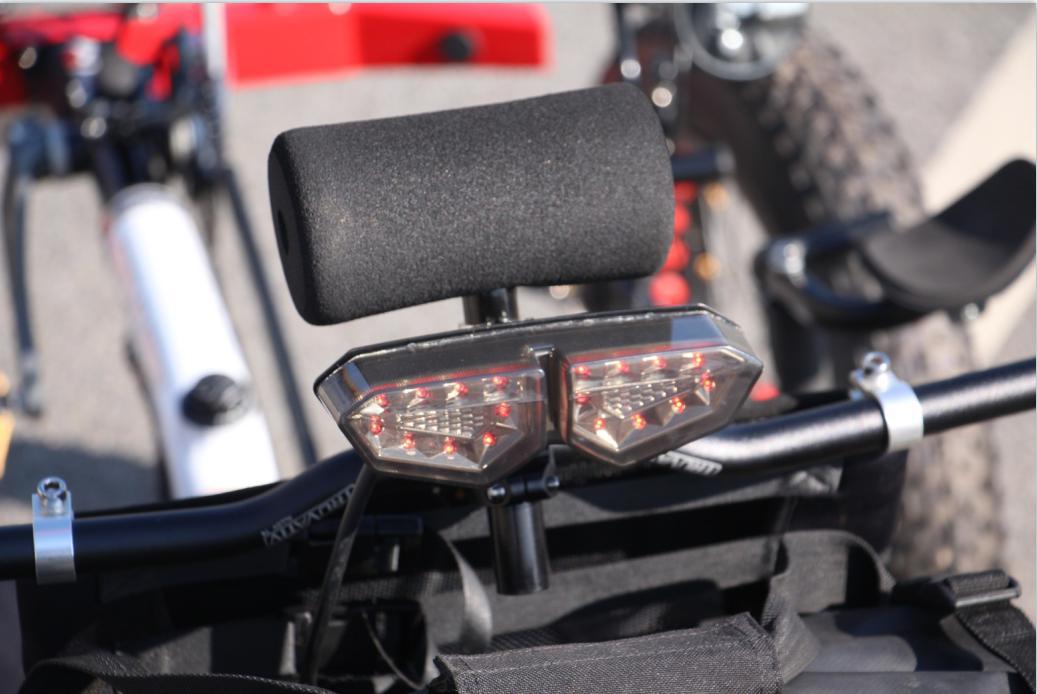

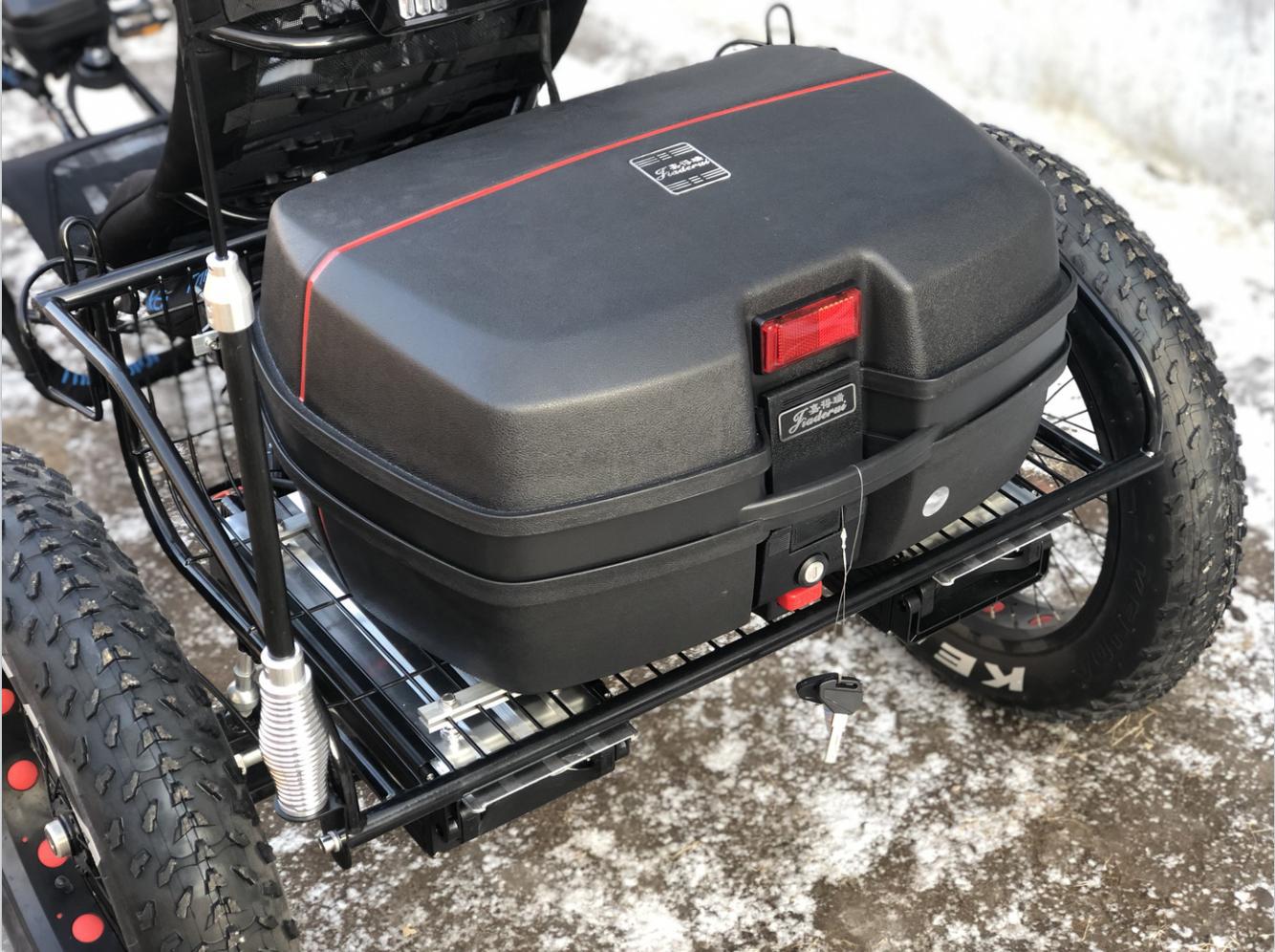

Customizable Options: Enhance your TheraQuad F420E with optional features such as a complete lighting system (headlights, taillight, and turn signals), a rear storage box, and the ability to add a second battery for extended range.
Technical Specifications:
-
Dimensions:
- Overall Width: 90 cm (35.4 inches)
- Overall Height: 91 cm (35.8 inches)
- Overall Length: 180-200 cm (70.9-78.7 inches)
- Ground Clearance: 17 cm (6.7 inches)
-
Weight and Load Capacity:
- Weight: 23 kg (50.7 lbs)
- Maximum Load: 150 kg (330 lbs)
-
Components:
- Frame: Aluminum 6061 T6
- Tires: Kenda 20x4.0"
- Brakes: Avid BB7 Mountain Mechanical Disc Brakes
- Gears: Shimano Alivio 3x9-Speed
Experience a new level of mobility with the TheraQuad F420E, combining innovative design, powerful performance, and exceptional comfort. Ideal for rehabilitation, therapeutic use, and everyday mobility, this quad is your key to enhanced independence and well-being.
